輸入電壓 Vdc | 9-36 | |
輸出電壓精度 % | ±1 | |
負載調整率 % | ±0.5 | |
電壓調整率 % | ±0.2 | |
動態響應 (過沖/恢復時間) |
±4%Vo/400us | |
紋波/噪聲(mV) | Vo≤5Vdc:50 | |
Other:100 | ||
工作殼溫 | -40℃ - +105℃ | |
開關頻率KHz | 300 | |
短路保護 | 長期短路自恢復 | |
隔離耐壓 | 輸入-輸出:1500Vdc | |
輸入-殼:1500Vdc | ||
輸出-殼:500Vdc | ||
MTBF | 3×105 | |
安規要求 | GB 9254-2008 | |
軍用常規產品命名規則 | ||
例如:WD25-24S12 G注① A注② | ||
質量等級注① | ||
D級 | 工業級篩選 | |
G級 | 普通軍級產品 | |
H級 | 軍級產品 | |
K級 | 航天級產品 | |
溫度等級注② | 工作殼溫℃ | 工作環溫℃ |
A級 | -40 - +95 | -40 - +55 |
B級 | -40 - +95 | -40 - +70 |
C級 | -55 - +95 | -55 - +70 |
D級 | -40 - +105 | -40 - +85 |
E級 | -55 - +105 | -55 - +85 |
F級 | 為客戶特殊定制溫度范圍 |
型號 | 輸入電壓Vdc | 輸出電壓Vdc | 輸出電流A | 效率% | 容性能力UF |
WDJ25-12S3V3 | 9-18 | 3.3 | 5 | 82 | 4700 |
WDJ25-12S5 | 5 | 5 | 82 | 4700 | |
WDJ25-12S12 | 12 | 2.08 | 83 | 1000 | |
WDJ25-12S15 | 15 | 1.67 | 83 | 1000 | |
WDJ25-12S24 | 24 | 1.04 | 84 | 470 | |
WDJ25-24S3V3 |
18-36 W:9-36 |
3.3 | 5 | 82 | 4700 |
WDJ25-24S5 | 5 | 5 | 82 | 4700 | |
WDJ25-24S12 | 12 | 2.08 | 84 | 1000 | |
WDJ25-24S15 | 15 | 1.67 | 84 | 1000 | |
WDJ25-24S24 | 24 | 1.04 | 85 | 470 | |
WDJ25-12D5 | 9-18 | +5/-5 | +2.5/-2.5 | 80 | 2200/2200 |
WDJ25-12D12 | +12/-12 | +1.04/-1.04 | 83 | 1000/1000 | |
WDJ25-12D15 | +15/-15 | +0.83/-0.83 | 83 | 470/470 | |
WDJ25-24D5 | 18-36 | +5/-5 | +2.5/-2.5 | 85 | 2200/2200 |
WDJ25-24D12 | +12/-12 | +1.04/-1.04 | 84 | 1000/1000 | |
WDJ25-24D15 | +15/-15 | +0.83/-0.83 | 84 | 470 | |
WDJ35-12S3V3 | 9-18 | 3.3 | 7 | 86 | 10000 |
WDJ35-12S5 | 5 | 7 | 86 | 4700 | |
WDJ35-12S12 | 12 | 2.9 | 86 | 1000 | |
WDJ35-12S15 | 15 | 2.33 | 86 | 1000 | |
WDJ35-12S24 | 24 | 1.45 | 86 | 470 | |
WDJ35-24S3V3 |
18-36 W:9-36 |
3.3 | 7 | 86 | 10000 |
WDJ35-24S5 | 5 | 7 | 86 | 4700 | |
WDJ35-24S12 | 12 | 2.9 | 86 | 1000 | |
WDJ35-24S15 | 15 | 2.33 | 86 | 1000 | |
WDJ35-24S24 | 24 | 1.45 | 86 | 470 | |
WDJ35-12D5 | 9-18 | +5/-5 | +3.5/-3.5 | 80 | 2200/2200 |
WDJ35-12D12 | +12/-12 | +1.4/-1.4 | 83 | 1000/1000 | |
WDJ35-12D15 | +15/-15 | +1.15/-1.15 | 83 | 1000/1000 | |
WDJ35-24D5 | 18-36 | +5/-5 | +3.5/-3.5 | 81 | 2200/2200 |
WDJ35-24D12 | +12/-12 | +1.4/-1.4 | 84 | 1000/1000 | |
WDJ35-24D15 | +15/-15 | +1.15/-1.15 | 84 | 1000/1000 |
型號 | 輸入電Vdc | 輸出電壓Vdc | 輸出電流A | 效率% | 容性能力UF |
WDJ40-12S3V3 | 9-18 | 3.3 | 8 | 84 | 10000 |
WDJ40-12S5 | 5 | 8 | 85 | 4700 | |
WDJ40-12S12 | 12 | 3.33 | 85 | 1000 | |
WDJ40-12S15 | 15 | 2.66 | 85 | 1000 | |
WDJ40-12S24 | 24 | 1.66 | 85 | 470 | |
WDJ40-24S3V3 |
18-36 W:9-36 |
3.3 | 8 | 84 | 10000 |
WDJ40-24S5 | 5 | 8 | 85 | 4700 | |
WDJ40-24S12 | 12 | 3.33 | 86 | 1000 | |
WDJ40-24S15 | 15 | 2.66 | 86 | 1000 | |
WDJ40-24S24 | 24 | 1.66 | 86 | 470 | |
WDJ40-12D5 | 9-18 | +5/-5 | 4/-4 | 80 | 2200/2200 |
WDJ40-12D12 | +12/-12 | 1.67/-1.67 | 82 | 1000/1000 | |
WDJ40-12D15 | +15/-15 | 1.33/-1.33 | 82 | 1000/1000 | |
WDJ40-24D5 | 18-36 | +5/-5 | 4/-4 | 81 | 2200/2200 |
WDJ40-24D12 | +12/-12 | 1.67/-1.67 | 83 | 1000/1000 | |
WDJ40-24D15 | +15/-15 | 1.33/-1.33 | 83 | 1000/1000 |

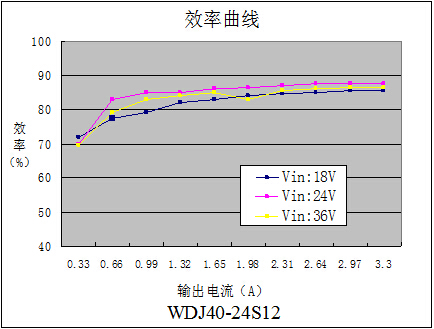

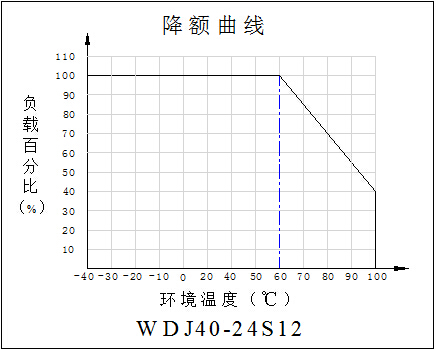

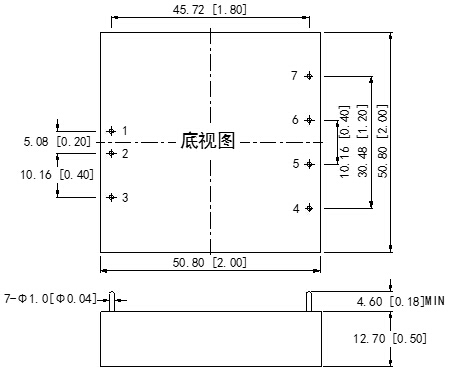

管腳 | 1 | 2 | 3 | 4 | 5 | 6 |
功能 | +Vin | -Vin | CNT | -Vo | TRIM | +Vo |
描述 | 輸入正 | 輸入負 | 遙控端 | 輸出負 |
輸出 調節端 |
輸出正 |
